ZEISS Precision Shooting

ZEISS Pro-Series MAX-DUTY Tripod Kits

Built for speed and stability.

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

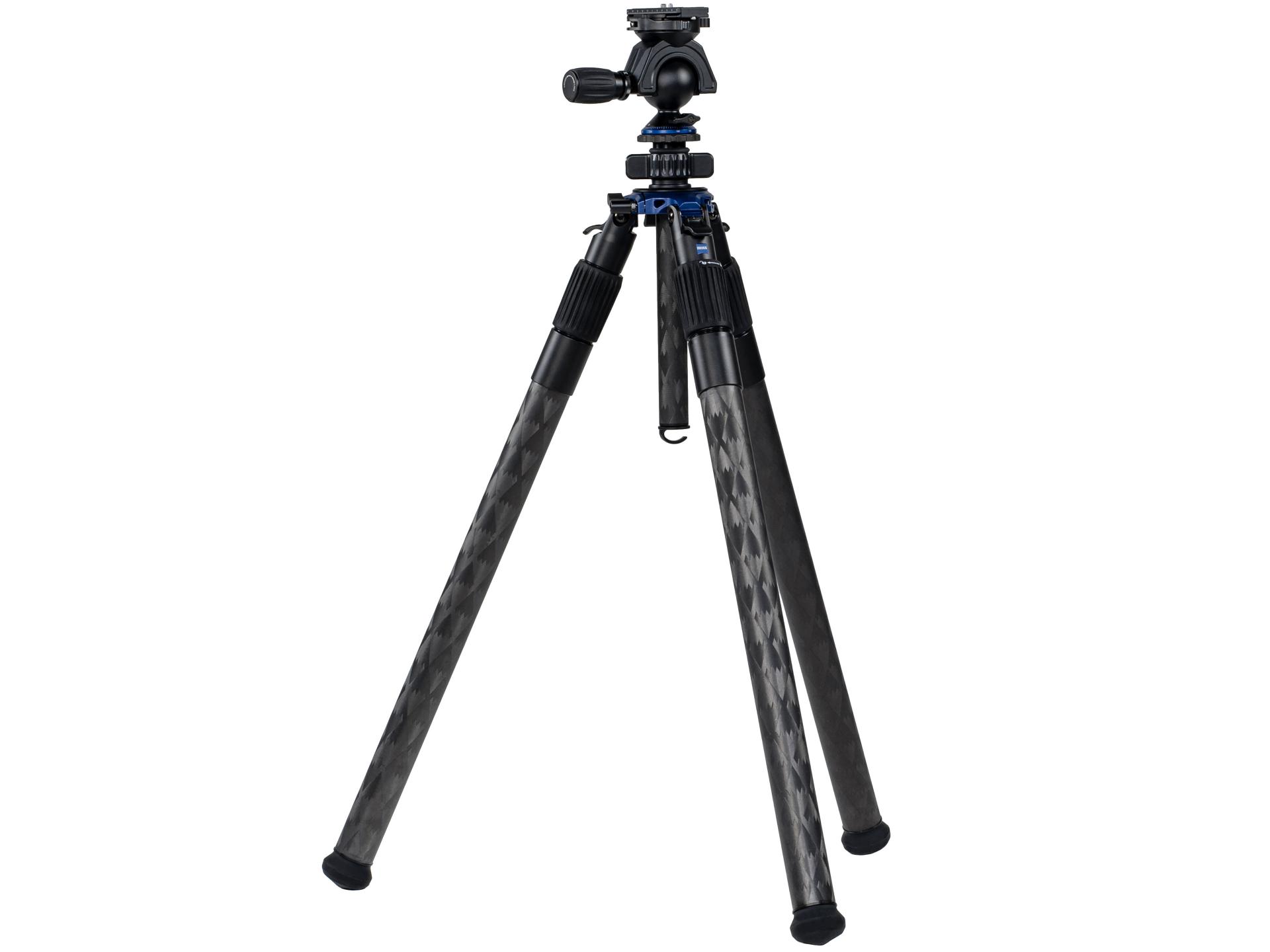

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.

MAX-DUTY V

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment. This provides a greater amount of tilt angle adjustments over multiple compound directions.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.

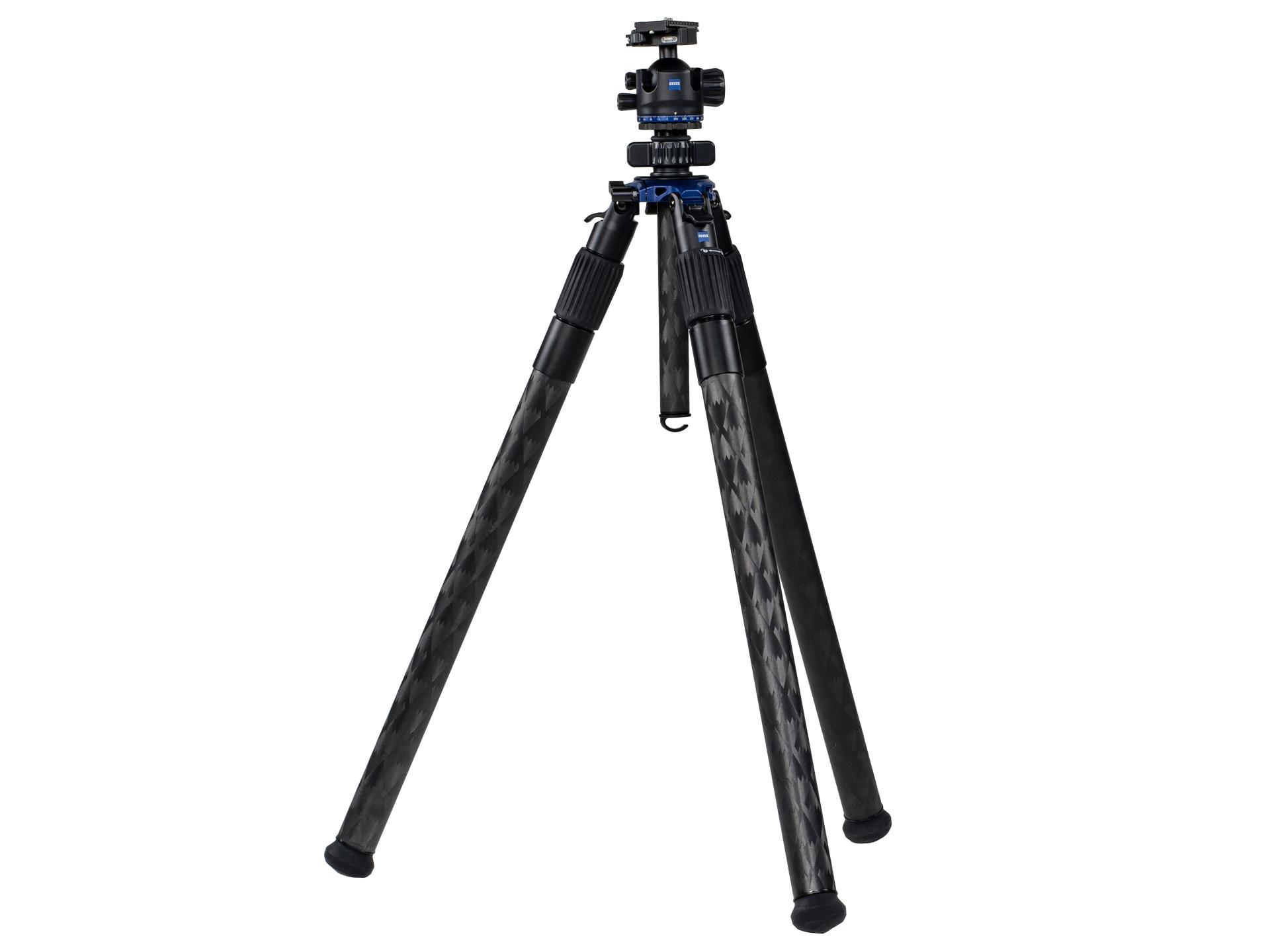

MAX-DUTY L

The MAX-DUTY L comes with Ballhead L-55 (Low Profile) allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Introduction Video

ZEISS Pro-Series Tripod Kit - MAX-DUTY for Precision Rifle Competition

In this video, our competitors dive into the features and benefits of the Pro-Series Tripod Kit - MAX-DUTY, designed for unmatched stability and versatility in precision rifle shooting. This advanced competition-ready tripod comes equipped with a highly versatile ballhead, a removable center column, and essential accessories – all bundled together for a seamless purchase experience.

A man is using ZEISS optics mounted on a tripod while aiming outdoors under a clear blue sky.

Exceptional Stability

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
  • Large, thread-in rubber feet for stay-in-place footing
  • Multi-angle leg positions consisting of 24, 55, and 85 degrees
  • Multiple adjustments for hassle-free stability

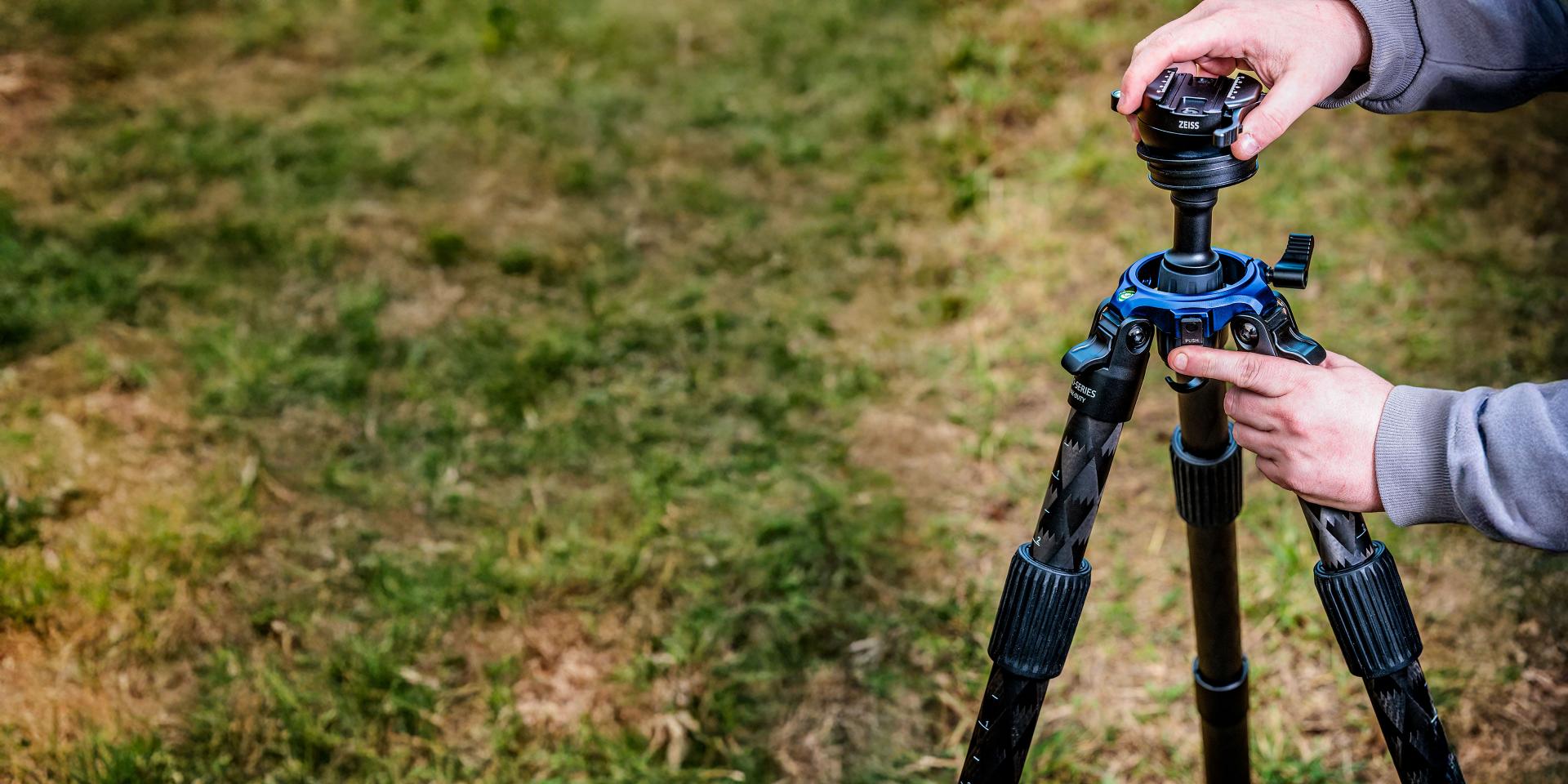

Person adjusting the head of a professional tripod setup on grass, with visible blue ZEISS components.

Fast & Easy Setup

  • Inverted 3-section leg design for ultimate compactness
  • Single-point leg adjustments with extended Twist-Locks
  • Modular, open apex system for maximum versatility
  • Removable through-the-center column for easy height adjustments
  • Easy-press leg adjustment mechanism
A man lies prone in a grassy field aiming a rifle equipped with a ZEISS scope, with a forested landscape in the background.

Robust Design

  • Machined aluminum frame and joints
  • Black, anodized finish
  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs
  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions

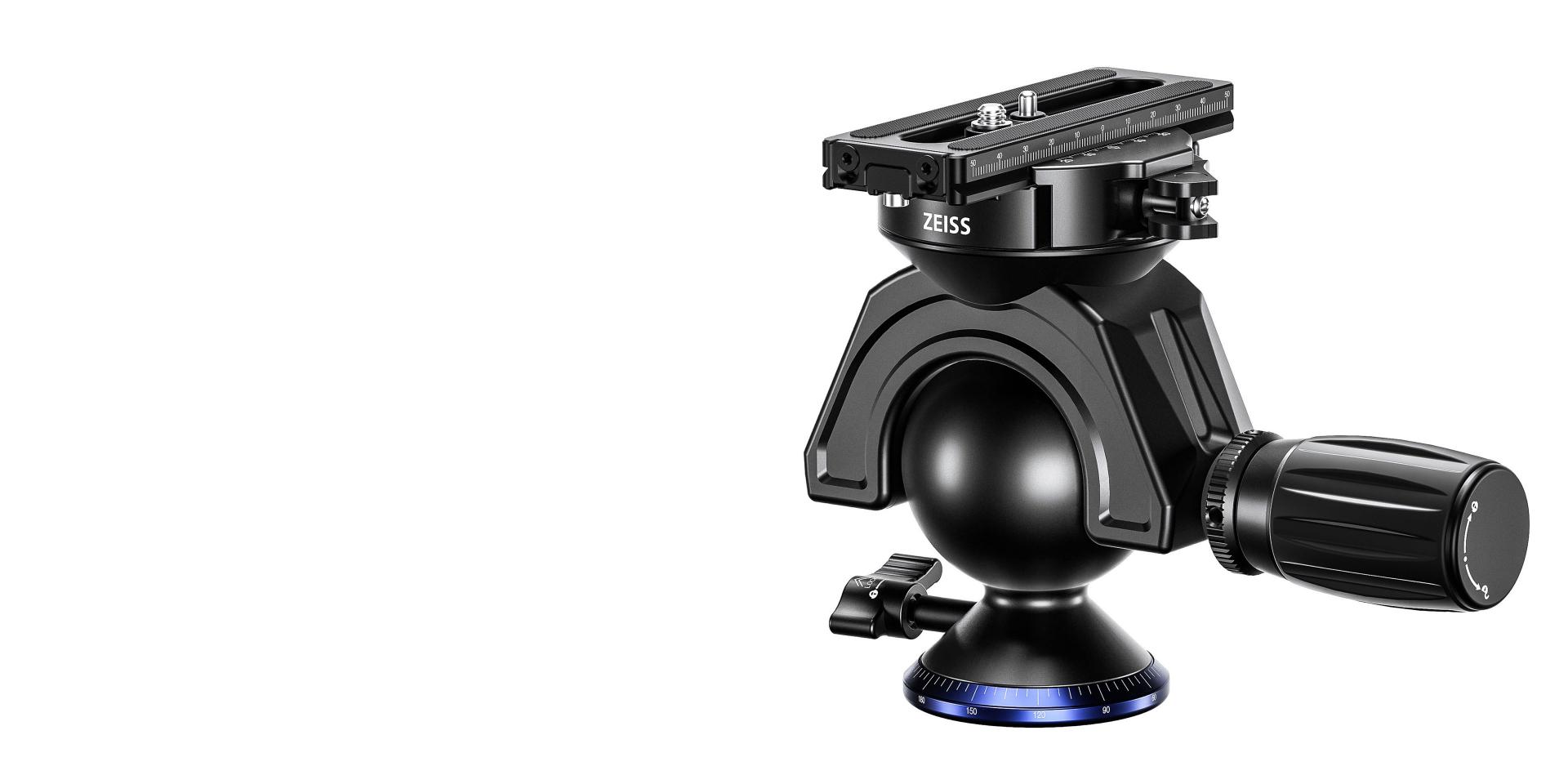

Black ZEISS tripod ball head with adjustable knobs and mounting plate, displayed on a white background.

Secure Connection

  • Arca-Swiss top mounting system
  • 3/8” Thread-on head
  • 1/4-20 extended balance plate with rubberized anti-slip strips
  • Strong, adjustable, ergo-friendly clamps and knobs

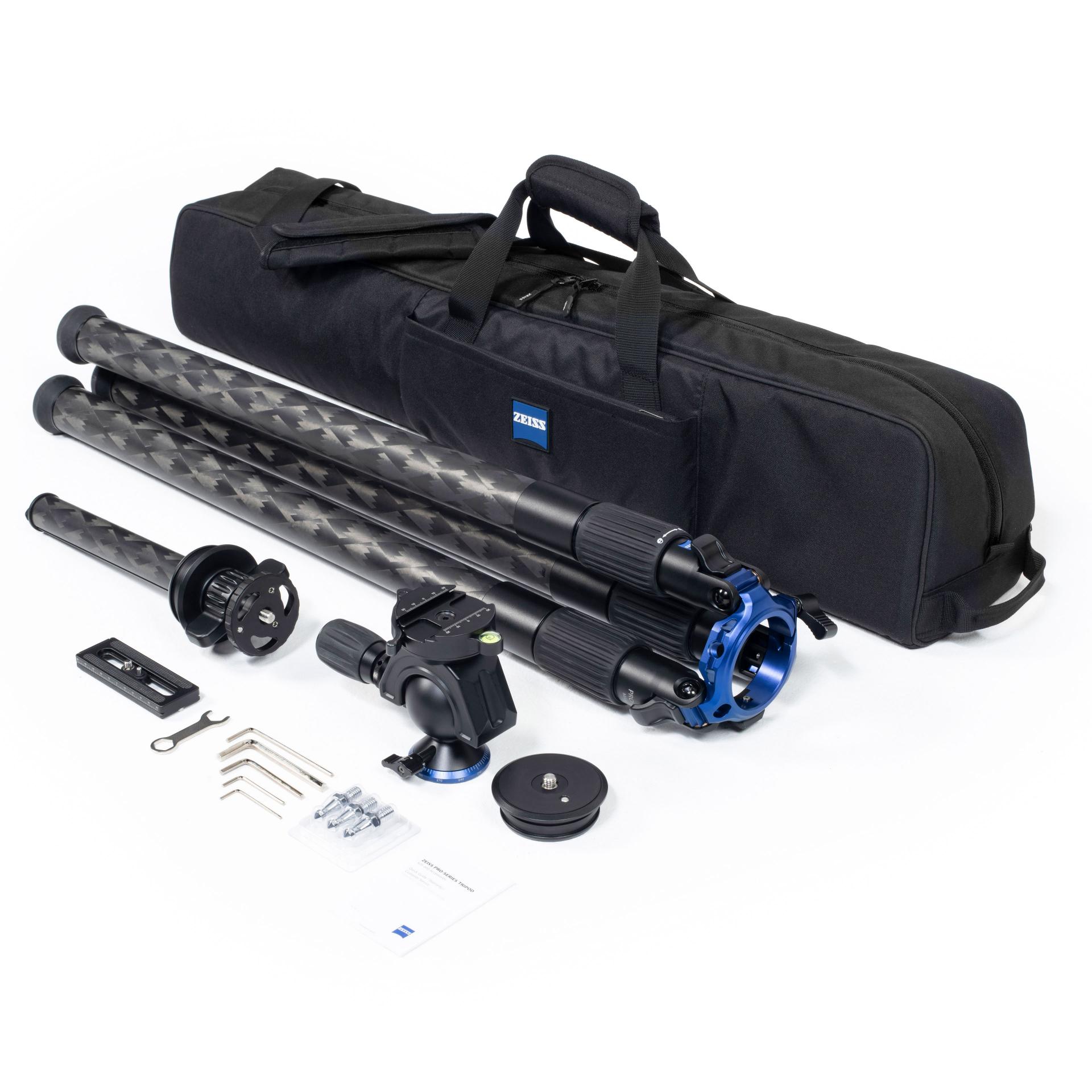

  • Carbon fiber tripod kit with multiple components, including a tripod head, mounting accessories, instruction manual, and a black carrying case featuring the ZEISS logo.

    With Ballhead V-60

  • Camouflaged ZEISS trail camera with a large external antenna, shown mounted inside an open protective case.

    With Ballhead L-55

What's included in the kit?

  • MAX-DUTY Tripod
  • Ballhead V-60 or Ballhead L-55
  • Removable Center Column
  • Flat Plate Adapter with 3/8” Stud
  • 1/4-20 Extended Adapter Plate
  • Tripod Bag with Shoulder Strap
  • Tool Kit
  • Spiked Feet
  • Quick Guide

Technical Data

ZEISS Pro-Series Tripod Kits
  • Head Type

    Ballhead V-60

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.2 kg | 11.4 lbs

    Weight (With Head, With Center Column)

    5.5 kg | 12.1 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    187 cm | 71.5"

    Compressed Length (With Head, With Center Column)

    101 cm | 39.8"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

  • Head Type

    Ballhead L-55

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.0 kg | 11.0 lbs

    Weight (With Head, With Center Column)

    5.3 kg | 11.8 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    184 cm | 69.7"

    Compressed Length (With Head, With Center Column)

    99 cm | 38"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

Garanti 10 ans.

Lorsque vous enregistrez votre trépied, vous activez automatiquement notre garantie de 10 ans.

Données techniques

Kits trépieds ZEISS Pro-Series

Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.
Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.

Tête à rotule V-60

La rotule ZEISS Pro-Series Ballhead V-60 est extrêmement polyvalente et offre une large plage d'angles d'inclinaison et de réglages composés. L'angle d'inclinaison pouvant atteindre 115° est fluide et précis, vous permettant de trouver l'angle parfait à chaque fois. La résistance au mouvement de la tête peut être facilement adaptée pour s'adapter aux différents poids des divers appareils montés.

Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.
Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.

Tête à rotule L-55

La tête à rotule L-55 de ZEISS Pro-Series est une tête à rotule populaire, fiable et stable. Avec son design familier et discret, elle offre jusqu'à 90° de réglage total pour les appareils montés. La rotule fonctionne en douceur, avec des réglages précis, ce qui permet de trouver facilement la position parfaite pour l'optique ou l'appareil monté.

Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.
Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.

Tête de mise à niveau Q-75

La tête de mise à niveau Q-75 offre un accès rapide. Elle est compatible Arca-Swiss et comprend un adaptateur de 75 mm. La poignée de réglage unique est dotée d'un crochet allongé pour plus de commodité.

Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.
Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.

Sac d'accessoires

Le sac d'accessoires ZEISS est conçu pour ajouter un poids supplémentaire à votre trépied afin d'en améliorer la stabilité, en particulier dans des conditions venteuses ou lors de l'utilisation d'un équipement plus lourd. Il constitue également une solution pratique pour le stockage temporaire d'équipements supplémentaires.

Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.
Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.

Rail multi-appareils

Le rail multi-appareils ZEISS est un accessoire polyvalent qui vous permet de fixer plusieurs appareils à la fois sur la tête de votre trépied. Compatible avec Arca-Swiss et 1/4-20, il permet de fixer solidement divers appareils tels que des télémètres, des longues-vues, des jumelles, des caméras thermiques et bien d'autres encore. Il s'agit donc de la solution idéale pour optimiser la fonctionnalité et l'efficacité de votre trépied.

Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.
Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.

Pince à jumelles

La pince à jumelles ZEISS convient à la plupart des tailles et marques de jumelles, y compris celles qui ne sont pas équipées d'un support de trépied. La pince est dotée d'un bouton de réglage ergonomique spécialement conçu pour la rapidité et la facilité d'utilisation. Le réglage surdimensionné fonctionne bien avec des mains froides ou gantées et permet un système de fixation très sûr. Cet accessoire, associé à la tête compatible Arca-Swiss de votre choix, permet une observation stable même dans des conditions difficiles.

Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.
Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.

Adaptateur trépied-jumelles 1/4-20

L'adaptateur trépied-jumelles 1/4-20 de ZEISS permet de fixer rapidement et facilement vos jumelles au trépied. Il est doté d'une interface Arca-Swiss qui garantit une connexion sécurisée à la tête de votre trépied. Sa conception offre une prise en main confortable pour une manipulation et un contrôle sans effort. L'adaptateur est compatible avec les jumelles ZEISS suivantes : ZEISS Victory SFL, ZEISS Conquest HDX, ZEISS Conquest HD, ZEISS Terra ED 42.

Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.
Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.

Pince à fusil

La pince à fusil ZEISS offre une fixation simple, rapide et sûre pour votre fusil. Elle permet d'assurer la stabilité de la carabine, le suivi et le placement précis du tir dans diverses situations de tir. Le bouton ergonomique permet une meilleure prise en main et un meilleur contrôle du réglage afin de garantir un appui sûr et fiable pour la carabine. En outre, les utilisateurs finaux trouvent également cet accessoire utile de diverses manières lorsqu'ils ont besoin d'un article spécifique sécurisé ou soutenu sur le terrain.
